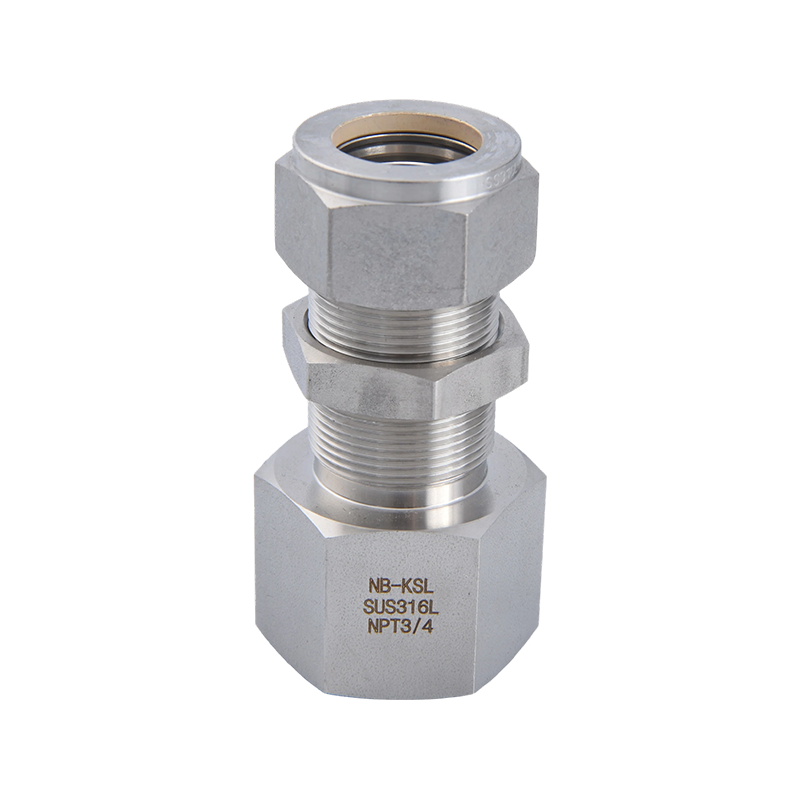

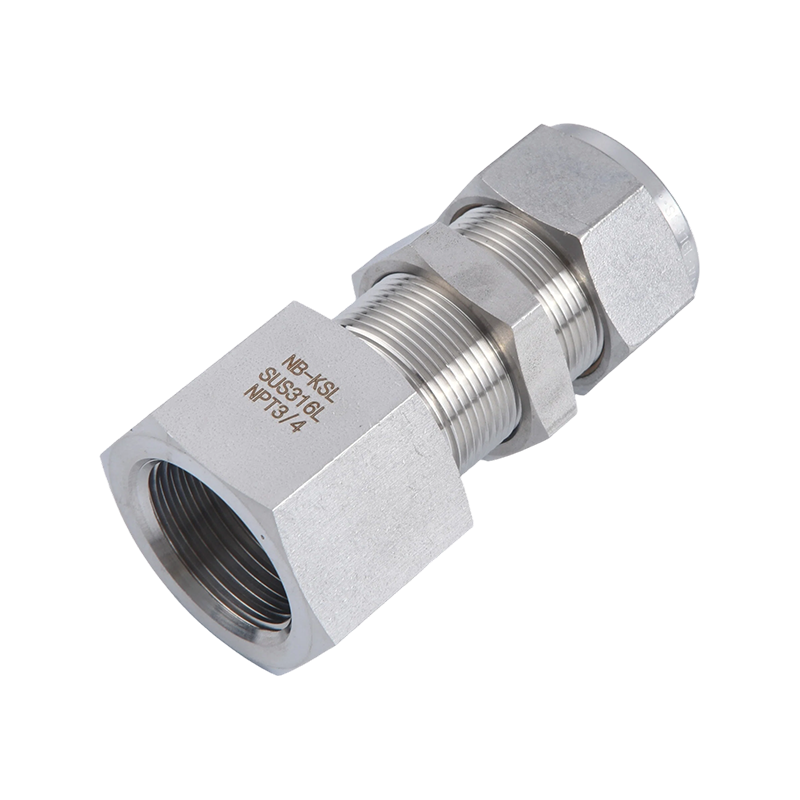

316L Thép không gỉ nén ren bên trong thông qua đầu nối tấm

DANH MỤC SỐ

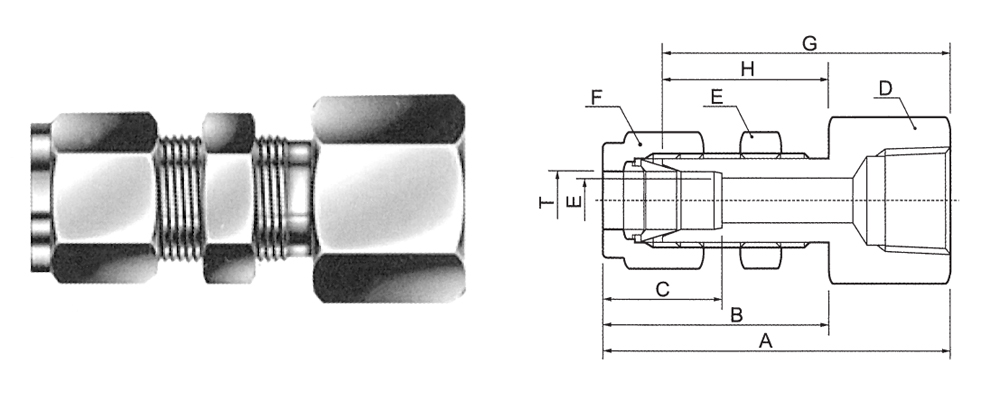

T ỐNG OD

PT-NPT NỮ ỐNG KÍCH THƯỚC

A

D

E

F

G

H

KHOAN LỖ PANEL

TẤM DÀY MAX

BFC-6-1

6

8/1

47.4

16

4.8

14

39.6

26.2

11.5

10.2

BFC-6-2

6

1/4

52.2

19

4.8

14

44.4

26.2

11.5

10.2

BFC-8-2

8

1/4

54.4

19

6.4

16

46.7

28.2

13.1

11.2

BFC-10-4

10

1/2

61.6

27

7.9

19

54.01

29.4

16.3

11.2

BFC-12-4

12

1/2

67.2

27

9.5

22

56.4

31.8

19.5

12.7

BFC-14-4

14

1/4

67.9

27

11.1

27

57.1

32.5

22.8

12.7

BFC-01-1

8/1

8/1

45.6

14

2.4

12

38.1

24.2

8.3

11.2

BFC-02-1

1/4

8/1

47.4

16

4.8

14

39.6

26.2

11.5

10.2

BFC-02-2

1/4

1/4

52.2

19

4.8

14

44.4

26.2

11.5

10.2

BFC-03-2

8/3

1/4

55.4

19

7.1

17

47.8

29.5

14.7

11.2

BFC-03-3

8/3

8/3

57

22

7.9

17

49.4

29.5

14.7

11.2

BFC-04-3

1/2

8/3

61.8

24

10.4

22

51.6

31.8

19.5

12.7

BFC-04-4

1/2

1/2

66.6

27

10.4

22

56.4

31.8

19.5

12.7

BFC-06-6

3/4

3/4

74

35

15.7

30

63.6

37.3

26

16.8
